The graphite electrode with grade of Ultra High Power(UHP for short) is produced and specified with allowable current density more than 25A/cm2. UHP electrode is widely used in electric furnace with ultrar high power for steel melting.







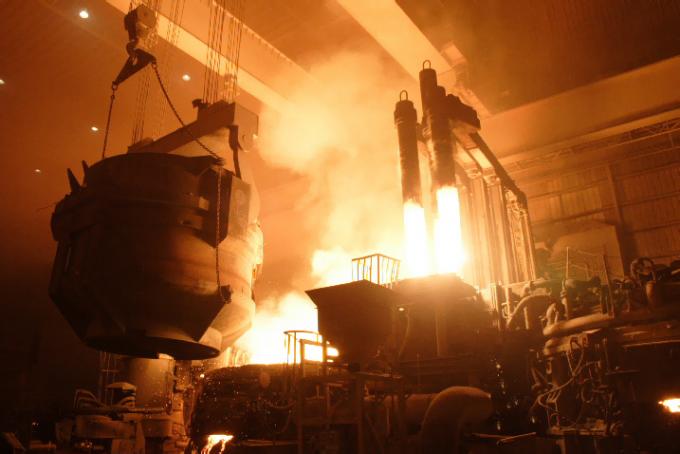

Application Field

APPLICATION

UHP electrode is widely used in electric furnace as conductable electrode in steel melting:

  • EAF with ultra high power for steel melting;
  • LF (Ladle Furnace) with ultra high power for refining;
  • Electric Furnace with ultra high power for production.

Specs Sheet

TECHNICAL SPECIFICATION FOR UHP GRADE

Dia.

(In.)

Specific
Resistance
(≤, μΩm)
Bending Strength
(≥, MPa)

Yong’s

Modulus
(≤, Gpa)

Bulk Density
(≥, g/cm3)
CTE
(100℃-600℃)
(≤, ×10-6/℃)

Ash

Content
(%)

Suggested
Current
(A)

-

Pole

Pin

Pole

Pin

Pole

Pin

Pole

Pin

Pole

Pin

Pole

-

10”

6.2

5.0

10.5

18.0

14.0

18.0

1.66

1.73

1.5

1.4

0.3

9,200-15,100

12”

6.2

5.0

10.5

18.0

14.0

18.0

1.66

1.73

1.5

1.4

0.3

15,000-22,000

14”

6.2

5.0

10.5

18.0

14.0

18.0

1.66

1.73

1.5

1.4

0.3

20,000-30,000

16”

6.2

5.0

10.5

18.0

14.0

18.0

1.66

1.73

1.5

1.4

0.3

25,000-40,000

18”

6.3

5.0

10.5

18.0

14.0

18.0

1.66

1.74

1.5

1.4

0.3

32,000-45,000

20”

6.3

5.0

10.5

18.0

14.0

18.0

1.66

1.74

1.5

1.4

0.3

38,000-55,000

22”

6.3

4.5

11.0

20.0

14.0

22.0

1.66

1.75

1.4

1.2

0.3

45,000-65,000

24”

6.3

4.5

11.0

20.0

14.0

22.0

1.66

1.75

1.4

1.2

0.3

50,000-75,000

28”

6.3

4.5

11.0

20.0

14.0

22.0

1.66

1.78

1.4

1.2

0.3

60,000-100,000

Note: Ash content is for reference.



Handling Procedure

PACKAGE

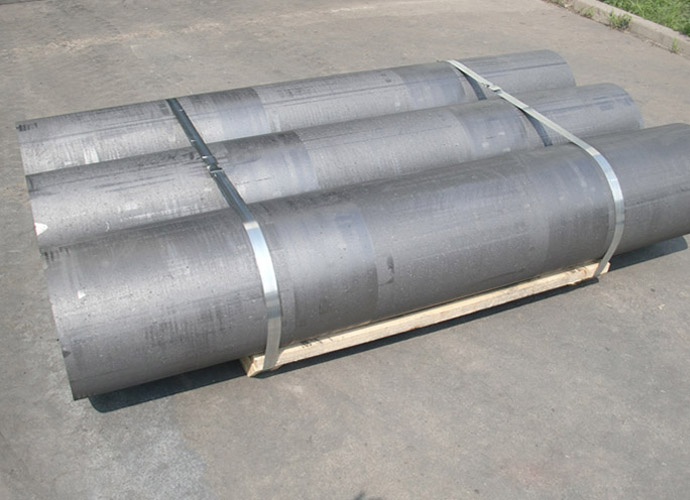

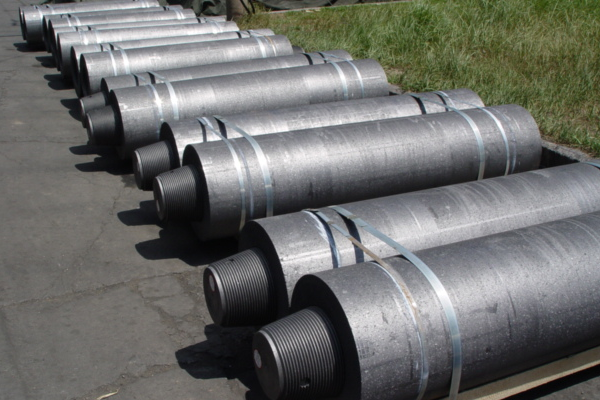

Generally there are two professional way of packaging for electrode storage and transportation listed as below:

  1. Separate Package: The electrode body and nipples are packaged separately to make shipment.
  2. Pre-connection: The nipples are connected and installed with one end of electrode body for shipment. The purpose is to protect electrode, especially for thread pars, from damage during storage and transportation.

Usually we adopt the 2nd way of package as per our technical expertise, and also can make package in accordance with specific instruction from customers.

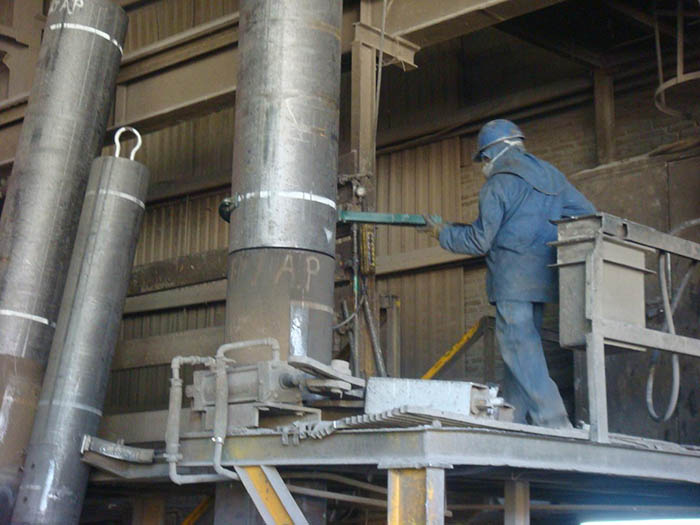

TRANSPORTATION & STORAGE

  1. Cautious operation is suggested during lifting or moving to prevent against tilting or sliding as to harm electrode.
  2. To ensure good status of end surface and screw threads, please donot directly hang the holes at the ends of electrode by hook when lifting electrode.
  3. Gentle operation on nipple boxes is needed to prevent any collision that may lead to thread damage.
  4. Electrodes and nipples shall not be stacked directly on the ground, so that electrodes are not damaged or polluted with soil.
  5. Electrode shall be stacked neatly in storage, and the height of stacking is suggested no more than 2 meters.
  6. Electrode shall be stored in dry condition against rain and moisture, and wet electrode if any shall be dried before usage to prevent cracking and additional oxidation during steel making.
  7. Nipples shall not be stored near high temperature to prevent nipple pin from melting for overheating.



MSDS

MSDS

A safety data sheet (SDS), material safety data sheet (MSDS), or product safety data sheet (PSDS) is an important component of product stewardship, occupational safety and health, and spill-handling procedures. SDS formats can vary from source to source within a country depending on national requirements.

SDSs are a widely used system for cataloging information on chemicals, chemical compounds, and chemical mixtures. SDS information may include instructions for the safe use and potential hazards associated with a particular material or product. The SDS should be available for reference in the area where the chemicals are being stored or in use.

Our team is in dedicate and professional position to provide above information for our customers and related operators to properly deal with what we supply to all over the world. You are welcome to contact us to get such information or data, and please click MSDS or just address support@unitshine.com.
